Specification

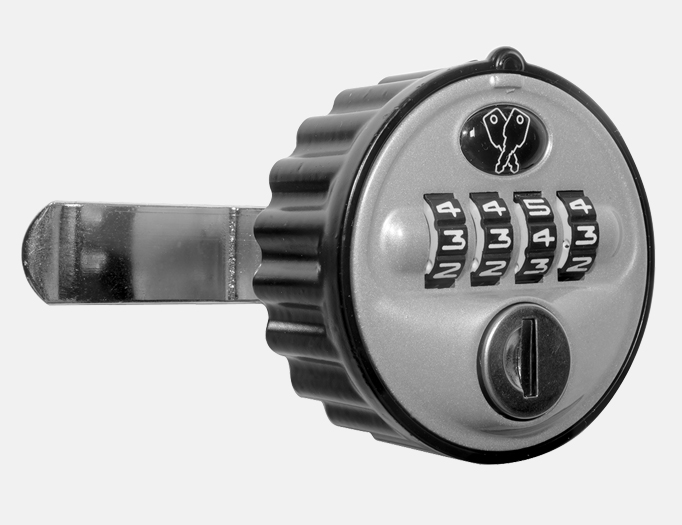

Introducing our latest 4 wheel combination lock designed and manufactured in the UK to exacting standards.
This lock features up to 10,000 unique combinations and an innovative code finding function which allows emergency access in the event of lost or forgotten codes. Furthermore a simple button allows the user to set their own pin code and change it at any time. The high quality powder coated finish ensures maximum protection and is available in a range of custom colours, along with the standard silver, white and black. Fitting is made easy by the industry footprint. With a robust design, range of options and simplicity of use the 2800 is suitable for a broad range of applications.
- Strong
- Reliable
- Simple to install
Features
- Zinc Die - Cast construction
- 4 Wheel Combination (10,000 Codes)
- Code finding feature (10 Disc barrel with shutter cap)
- Code changing function - only accesible in the un-locked position
- Powder coated finish
- Body - black as standard
- Face - white, silver or black as standard
- Other colours are available on request
- Diameter - 56 x 28mm (protrudes from door frame)
- Nut fixing - 3/4” - 27 UN x 21mm long (16.5mm A/F)
- Cam fixing - 8mm Sq. with M4 thread
- Epoxy logo badge (customer logo available on request)
Technical Drawing
